Tipper 6x4 5 yr / 500,000 km
U-2518 / U-2523 TIPPER
9-speed gearbox. Bogie suspension.
The toughest truck we sell. Bogie suspension and mine-lug tyres for ground that has no road, a nine-speed box with a crawler gear for hauling out fully loaded, and a 42% climbing ability. Choose 180 hp, or step up to 225 hp with the Euro 4 U-2523.
Price incl. VAT
Ksh 8,350,000
Trucks · Tipper 6x4In the field

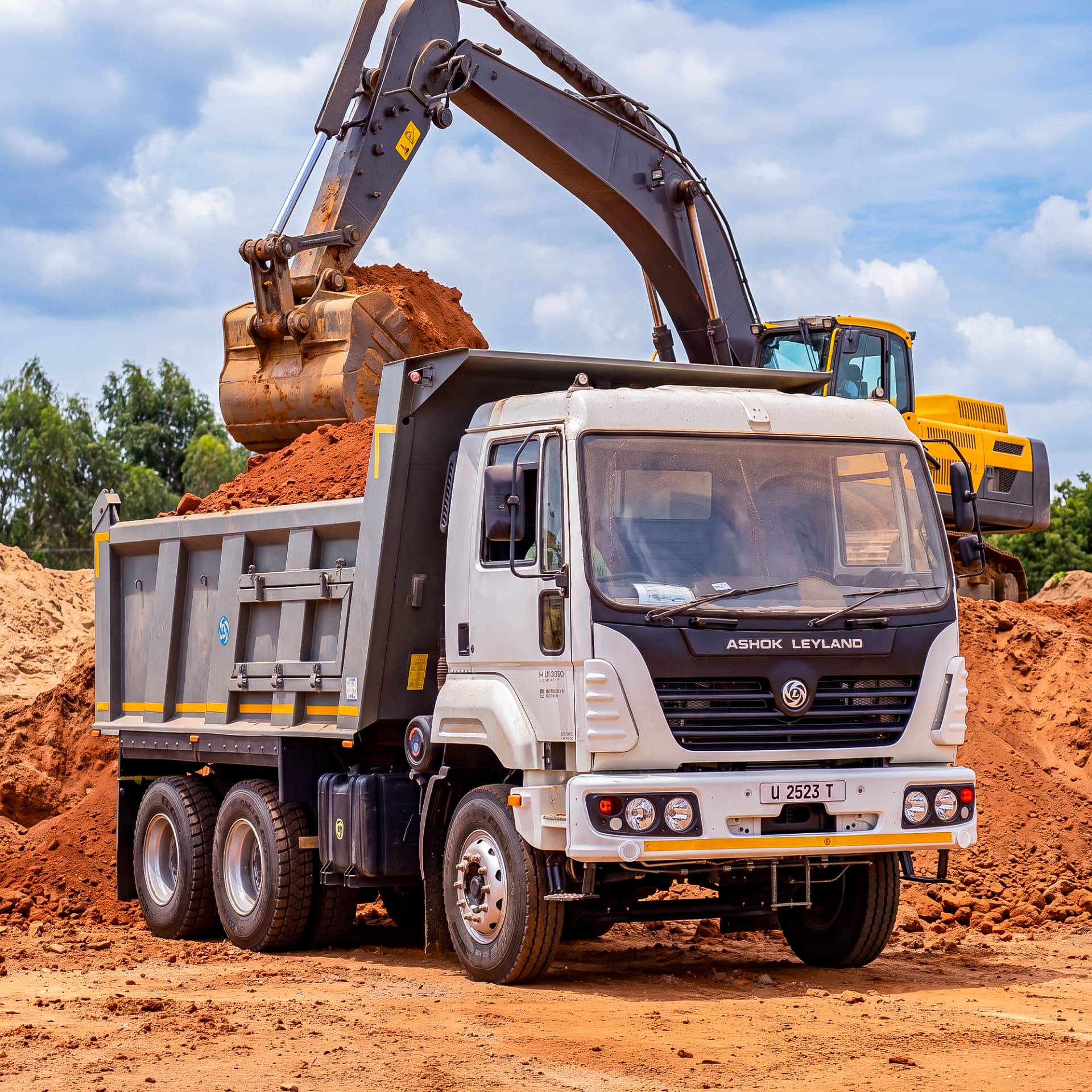

See the U-2518 / U-2523 TIPPER at work
1 / 2
Quarry operations
Why it wins
Built-in highlights
- 18 t payload with 12 m³ bucket
- Turbo engine with mechanical pump
- 180 hp output for faster trips
- 9 speed ZF gearbox with crawler gear
- Bogie suspension
- Hydraulic clutch actuation for minimum pedal effort
- Optimum tare weight for higher payload
- Warranty: 5 year or 500,000 km
Where it works
Applications
Quarry operationsStones transportationBallast and sand carrierBuilding bricks carrierGarbage truck
Technical data
U-2518 / U-2523 TIPPER specifications
- Engine
- H-Series 6 cyl. Intercooler Turbo
- Type
- Intercooled turbo
- Emission norms
- U-2518: Euro 3 · U-2523: Euro 4
- Displacement
- 5,759 cc
- Maximum Output
- U-2518: 180 HP @ 2,400 rpm · U-2523: 225 HP @ 2,400 rpm
- Maximum Torque
- U-2518: 660 Nm @ 1,500 rpm · U-2523: 800 Nm @ 1,900 rpm
- Segment
- Tipper
- Drive type
- 6x4
- Front Suspension
- Semi-elliptic multi-leaf (Shackle)
- Rear Suspension
- Bogie suspension
- Braking system
- Full-air, dual-line
- Steering Type
- Power steering
- Tyres
- 11 x 20 18PR Mine lug
- Fuel tank capacity
- 200 L
- Wheelbase
- 3,900 mm
- Bucket
- 12 m³
- Gross Vehicle Weight (GVW)
- 25,000 kg
- Payload
- Up to 18 t
5 yr / 500,000 km warranty · Assembled at AVA plant, Mombasa · *T&Cs apply
