Tipper 6x4
2518 IL TIPPER
Higher payload, good engine power.
GVW
25,000 kg
Power
180 hp @ 2,500 rpm
Payload
18 t
5 yr / 500,000 km
Trucks · Tipper 6x4
In the field

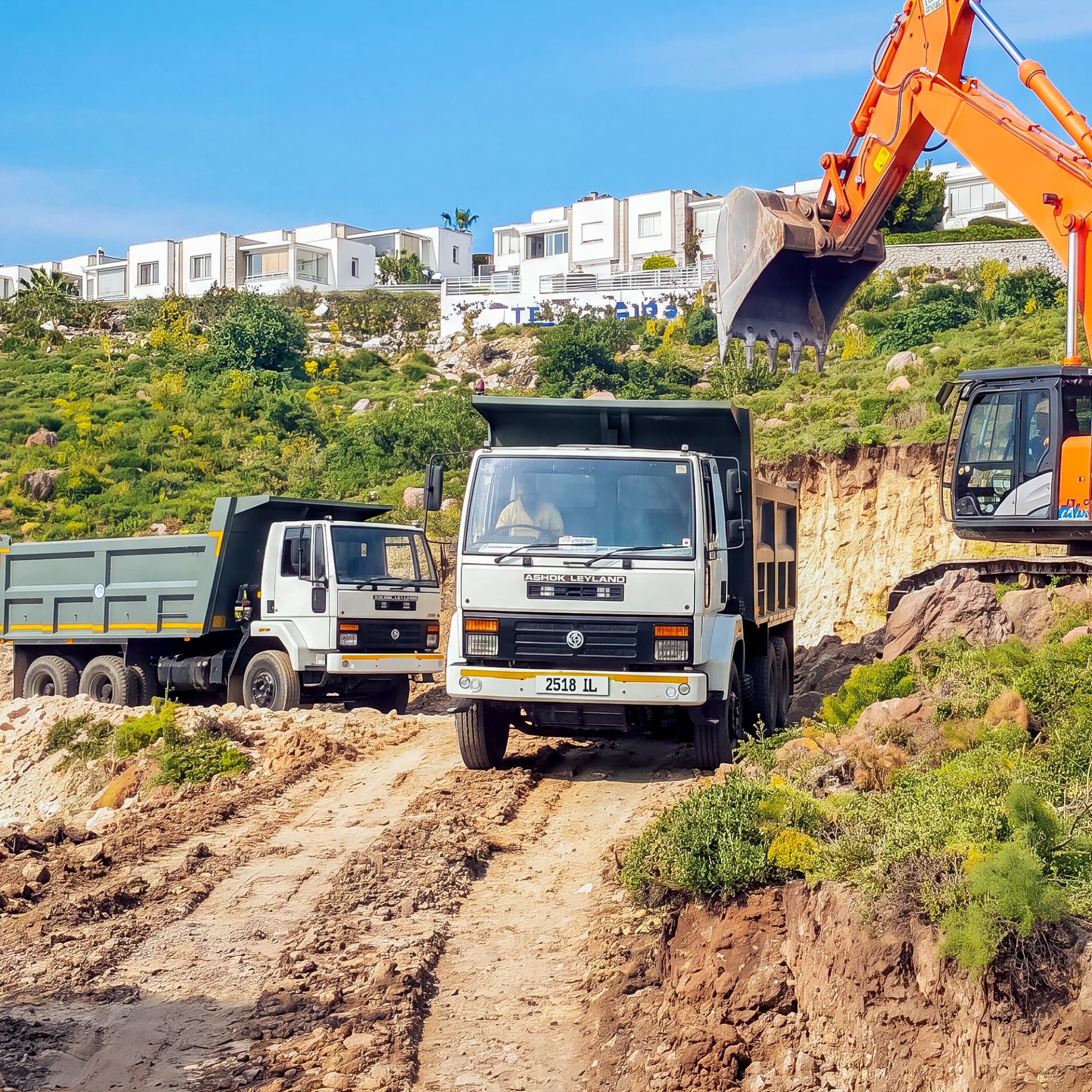

See the 2518 IL TIPPER at work
Application 1 / 5
Stones transportation
Why it wins
Built-in highlights
- Higher payload
- Good engine power
- Full-air dual line brakes
Payload
18 t
Loading
12 m³ bucket
Full specifications
Explore every detail
Wheelbase
3,810 mm
Drive type
6x4
Engine
H-Series 6-cyl intercooler turbo
Engine power
180 hp @ 2,500 rpm
Engine torque
660 Nm @ 1,200 1,900 rpm
Clutch
380 mm single-plate dry-type with booster
Gearbox
Eaton 6-Speed DD (FGR 9.01)
Front axle
Forged I-section reversed Elliot
Rear axle
Fully-floating single-speed hypoid (RAR 6.17)
Tyre
10 x 20 16PR
Front suspension
Semi-elliptic multi-leaf (shackle)
Rear suspension
Semi-elliptic multi-leaf (bell crank, non-reactive)
Steering
Power steering
Stones transportationConstruction debrisBallast / sand carrierBuilding bricks carrierGarbage truck
5 yr / 500,000 km warranty · Assembled at AVA plant, Mombasa · *T&Cs apply
